Wily Introscope Installation in Solution Manager

In Solution Manager Configuration Wily Introscope installation is a Compulsory step to manage the all systems in the Land Scape (Manage Java Applications)

Here let’s see how to Install Wily Introscope,

In Solution manager we need Wily Introscpe Enterprise Manager and Management Module

Fist we want to Download the File from ——->

    * SAP Software Download Center

—> Support Packages and Paches

—> By Alphabetical Index (A-Z)

—> S



—> Entry By Component


Download the ‘WILY INTROSCOPE ENTER MGR & WILY INTRO EM MGMT MODULES‘ files latest versions ( Introscope Enterprise Manager and Introscope Management Modules)

Also download the Third-party external file component package file based on the release,

Goto —>

Two types of Installation is there,

Silent Installation and GUI Installation

Extract the Wily Introscope Enterprise Manager file to a Folder with following command,

sapcar -xvf “file name”

For the Silent Instillation go to “Uncared” Enterprise Manager folder we have created,

Open the EULA.txt and CA-EULA.txt files and goto the last line change the following.

LGPL = reject to LGPL = accept

CA-EULA = reject to CA-EULA = accept

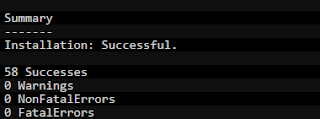

Install the osgipackage we have download before, If the installation completed successfully it shows the following message.

Next we can check the installation using GUI,

Goto to the ‘Uncared’ folder and execute the .exe file,

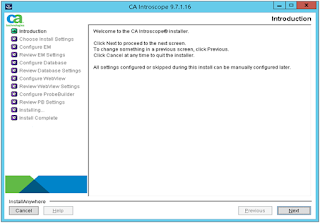

Choose ‘Next‘,

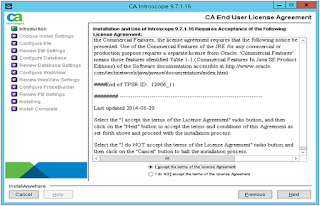

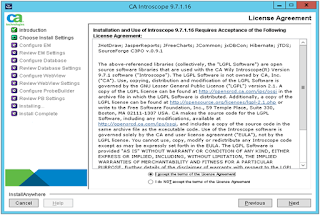

Accept the License Agreement,

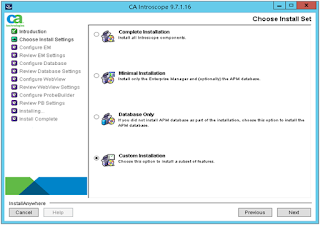

Select the Type of installation that you want, If select Custom installation you can select the Wily Enterprise Manager Products that you want

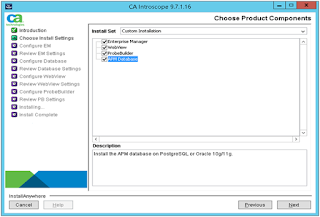

Select the Products that you want to Install,

Here it shows the path of Installation take place, Normally it is usr\sap\CCMS\apmintroscope

Select the osgipackage location,

Accept the License,

Select you want Advance JVM setting, normally it is not needed

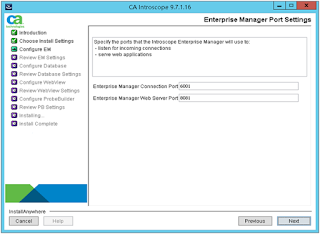

Here it shows the Ports of Introscope Enterprise Manager,

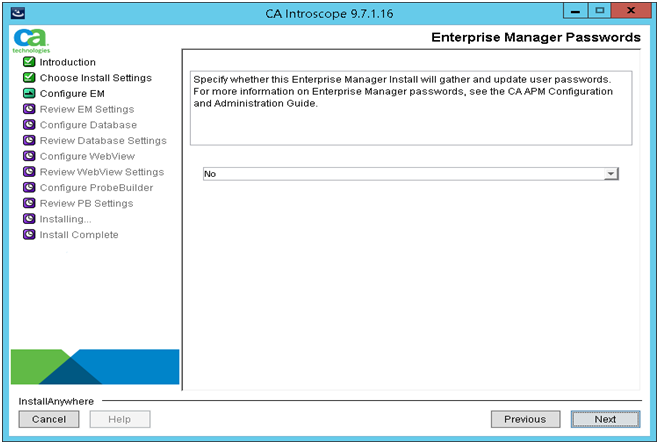

If you want to upgrade user password for Enterprise Manager you can do here, if it is not need select ‘No’. Default user & password is “Admin and Admin89

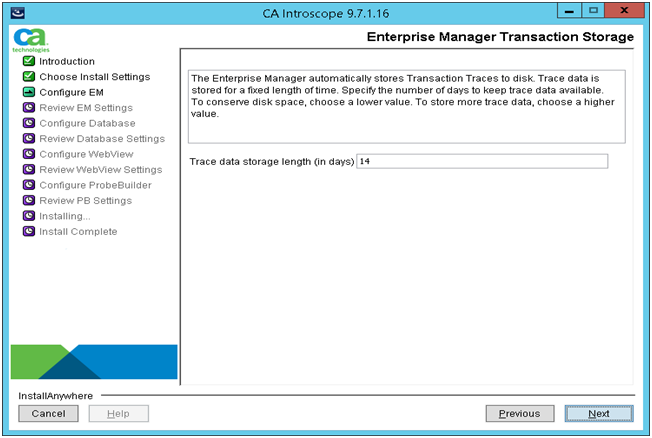

Set the  number of days you want to store the Trace data,

Set the name and space for Trace data,

Specify the directory for store Smartstor and Tread Dumps,

File for monitoring SOA environment installed in the examples folder. If it is not selected, we can manually enable monitoring bu copying files from external folder (Its not mandatory),

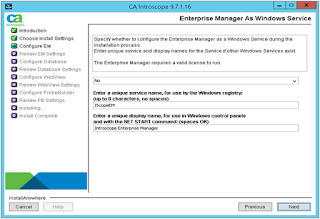

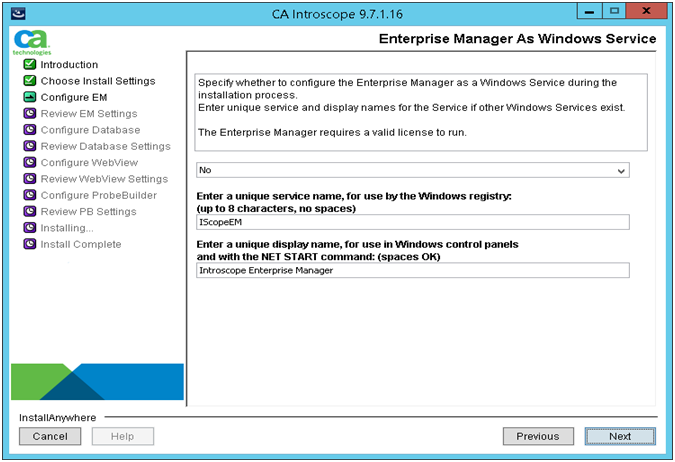

In this step we enable the Enterprise Manager in Windows service, so Chose “Yes” and specify a name for Enterprise Manager Service,

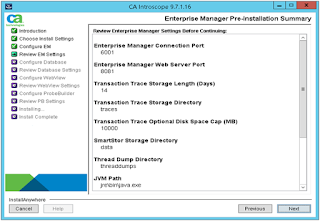

Showing the Summary that we have already set,

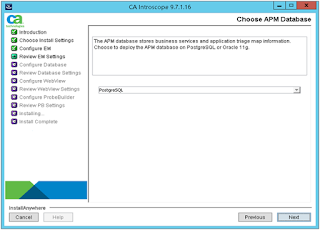

The APM database is store the business services and application triage map information, so you need to select one database for storing these (PostgreSQL or Oracle 11g),

Select Install database and choose ‘Next‘,

Specify a name for the APM database installation folder (Minimum 10 GB),

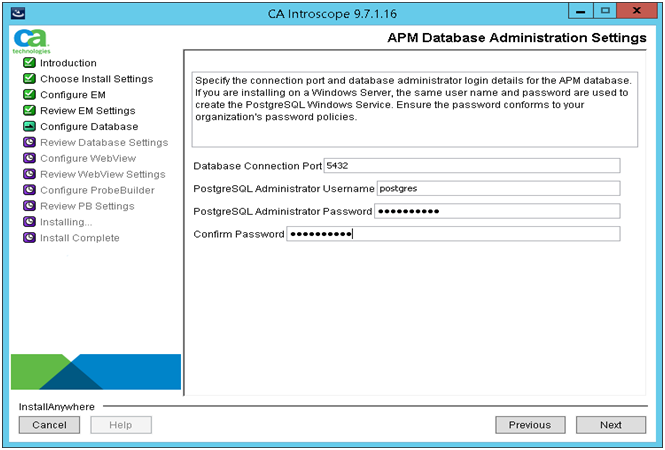

Set the Database administrator password,

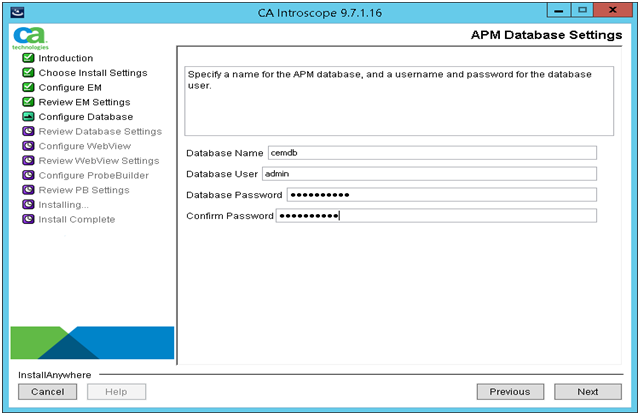

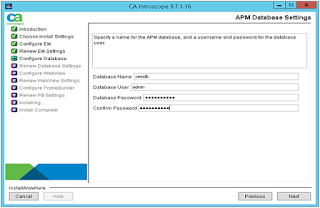

Specify the name of APM database, database user and set password for the database user,

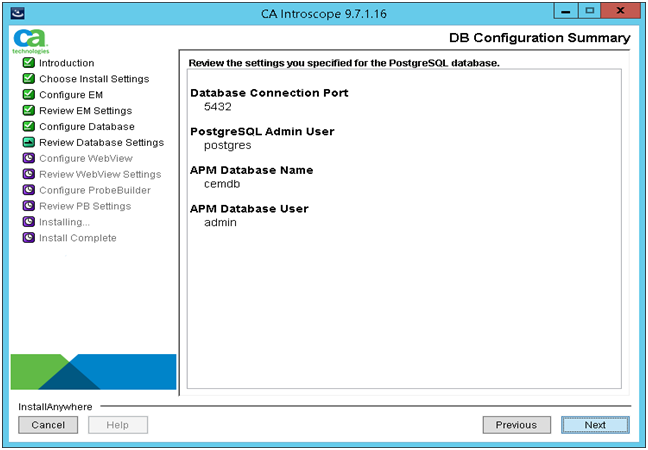

Review of the details that we set o the APM databse,

Specify the port for HTTP for the web view, host name and the port for the Enterprise Manager,

Specify whether to configure the web view as windows service,

Review of web view setting,

If everything is set well then choose ”Install” to start the Installation process,

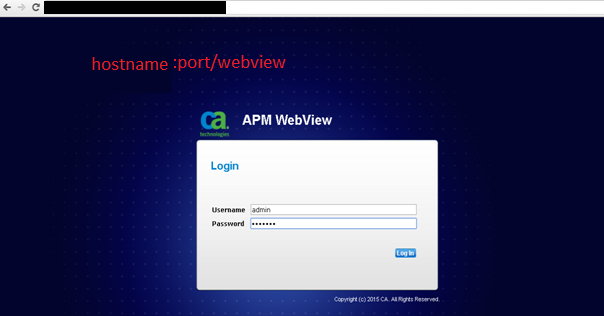

After complete the Installation with Successful then try to login the Web View using the link “hostname:port/webview”  and login with the user and password “Admin & Admin89“,

Now the “Enterprise Manager” Installation completed successfully, now install “Management Module”,

Uncar the “Management Module” file we have already downloaded to one folder, and copy the all files. Goto the Enterprise Manager file location “usr\sap\CCMS\apmintroscope” and past the all files and “Restart the Introscope Enterprise Service in windows service“.

It will work after the Service restarted….
